Developers

Get dimensions, weight, barcode and photos into your own systems.

An introduction for developers and IT: what the M2 sends, which of the four paths to choose, and how to start. The field-by-field details live in the API reference.

Perceptor API reference ↗ Talk to our integration team

Device push: JSON over HTTPSone record per scan
Units: mm and gshape Cuboidal or Irregular
Cloud API: 60 requests/minQBOID Cloud Pro
No code: WorkFlowsany WMS, ERP, TMS or endpoint

What you can build

Scan data where your team already works.

Each scan on the M2, handheld or docked in the S1, produces one record: length, width and height, weight from a paired scale, the barcode, the shape, your own fields and three photos. You decide where it goes.

Write dimensions and weight to the item master in your WMS or ERP
Rate shipments and choose cartons from measured dimensions in your TMS or packing software
Keep a photo of every item or shipment next to its record
Run the measurement from inside your own Android app on the M2

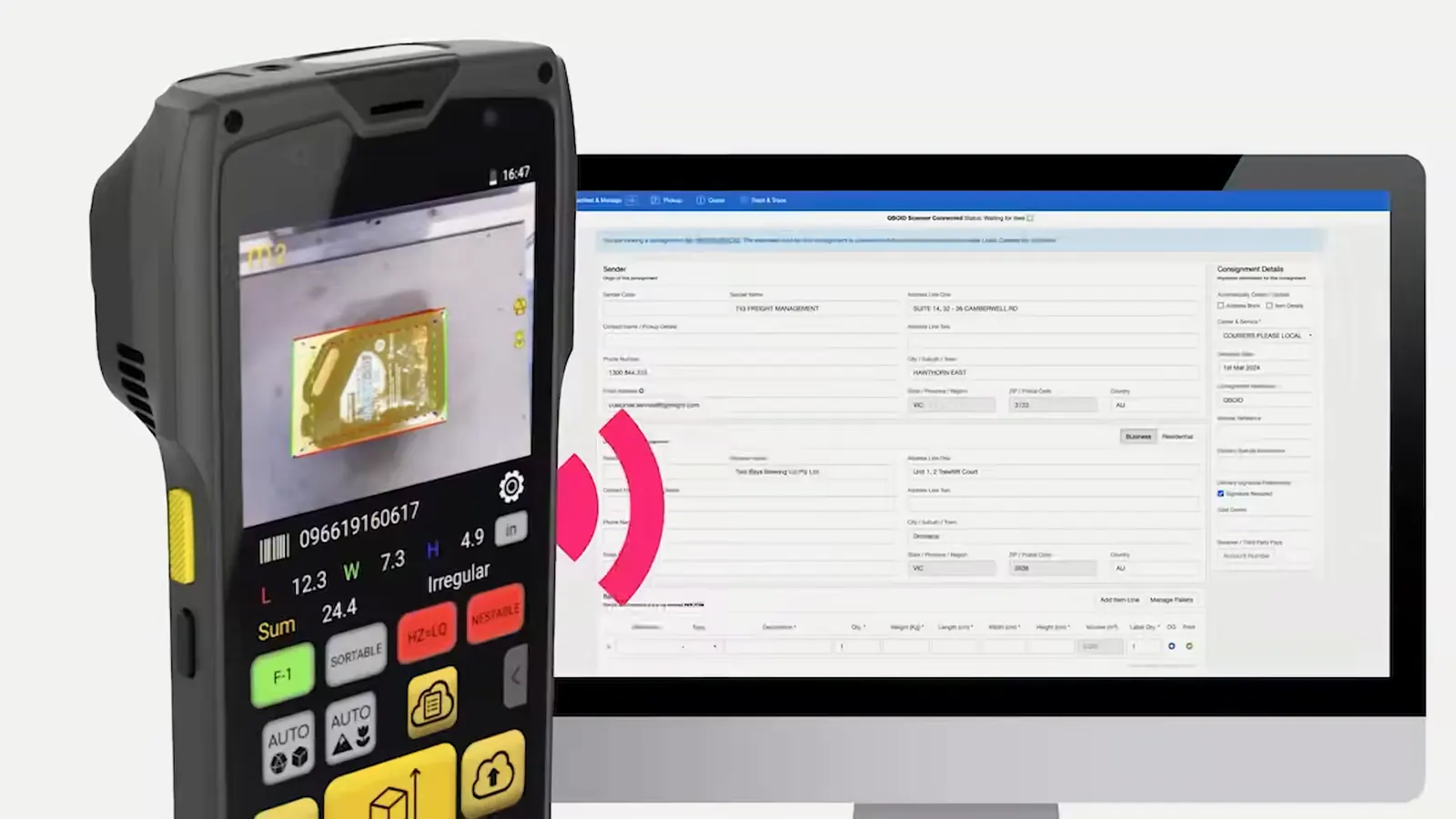

An M2 showing a measured item next to a computer screen with a shipping system form — A scan on the M2 fills the form in a shipping system.

Choose a path

Four ways to get the data.

Most projects use one. Some combine two, for example the device push to the WMS and QBOID Cloud as the photo archive.

Path	How it works	When to use it	What you need
Perceptor API device push	The M2 sends each record as JSON in an HTTPS POST to your endpoint, as the scan happens	You want scans in your system in real time, with nothing in between	An HTTPS endpoint that answers 2xx; optional bearer token; CA-signed or self-signed certificate
Android intents	Your Android app on the M2, handheld or docked in the S1, starts a dimensioning and gets the record back, with the scale's weight when one is paired	Operators already work in your own mobile app, such as a WMS client	An Android app you build and install on the M2 (Android 10)
QBOID Cloud REST API	The M2 syncs to QBOID Cloud; your system pulls the records	Scheduled imports, or devices that shouldn't reach your systems directly	QBOID Cloud Pro; up to 60 requests per minute
WorkFlows	QBOID builds an app with you that captures your fields and sends them where you choose	No developer time, or a process with several steps and checks	A call with QBOID; no code

An example · 51 seconds

The Intent API and WiFi API, in one sample app.

An app on the M2, docked in the S1, starts the QBOID capture through the Android intent. The operator places the item and scans its barcode; the record comes back to the app with the dimensions, the weight from the S1 scale, the shape and three photos, and the app posts it to QBOID Cloud in the WiFi API format, the same JSON as the device push. Each message is shown as code. Then five more items, with the pauses between them cut.

The app in the video was built with WorkFlows. Your own Android app makes the same calls.

Measure from your own Android app

The intent call, the record it returns and the POST to QBOID Cloud, with the S1 camera, the app on the M2 and the QBOID Cloud table side by side.

Quick start

First record in a few steps.

The outline for each path. Settings, parameters and response codes are in the reference.

Perceptor API · device push

Receive scans at your endpoint

Open an endpointAn HTTPS URL that accepts a JSON POST and answers with a 2xx status.
Point the M2 at itIn the app on the M2: Settings › Data Settings › WiFi API. Enter the URL and, if you use one, the bearer token.
Scan an itemThe record arrives at your endpoint. Map the fields to your item or shipment record.

Android intents

Measure from your own app

Install your app on the M2Next to the QBOID app, by hand or through your MDM.
Start a dimensioningCall the dimensioning intent of the Item & Parcel app (S1 mode included) or the Pallets app.
Read the resultYour app gets the same record back, and can still queue it for the device push.

QBOID Cloud REST API · Pro

Pull records from the cloud

Connect the M2 to QBOID CloudAdd the device by scanning a QR code from the browser (see the video below).
Activate ProThe REST API comes with QBOID Cloud Pro.
Pull on a scheduleFetch new records, up to 60 requests per minute, as described in the QBOID Cloud API reference (opens in a new tab).

WorkFlows · no code

Have the app built with you

Book a callDescribe the process and the system the data should reach.
Get the appMost apps are ready during the call; complex ones within 24 hours. Install by QR code.
ScanRecords go to your WMS, ERP, TMS or endpoint, email, Google Sheets or QBOID Cloud.

WorkFlows

Example payload

One scan, one JSON record.

The text fields of a record as the M2 sends them. The same record is returned by the Android intent and stored in QBOID Cloud.

POST · application/jsonSample record

{
  "timestamp": "2021\/05\/11 19:39:11",
  "l": 232,
  "w": 226,
  "h": 162,
  "barcode": "",
  "shape": "Cuboidal",
  "device": "639b7032",
  "note": "",
  "attributes": {}
}

A box 232 × 226 × 162 mm, no barcode scanned. When a scale is paired, weight is added in grams; the three photos travel as image, imagecolor and imageseg. Slashes in the timestamp may arrive escaped (\/); any JSON parser reads them as /.

Field	What it holds
`l`, `w`, `h`	Length, width, height in mm (integers). Length is the longer side on the ground plane
`weight`	Weight in g, from a paired Bluetooth scale or the S1 scale, or typed
`barcode`	UPC, SKU label, PO or your own barcode, from the scanner or typed
`shape`	`Cuboidal` or `Irregular`
`attributes`	Your own keys and values, from the four custom keys
`note`	Free text from the operator
`image`, `imagecolor`, `imageseg`	Three photos as base64 JPG: with the bounding box, plain, and background removed
`timestamp`, `device`	When (UTC, `yyyy/MM/dd HH:mm:ss`), and which M2 (serial number)

All fields in the reference

API references

The details live here.

Generated from QBOID's code, so they match the release you run. More references join this list as they are published.

Available

Perceptor API reference ↗

Device push settings, Android intents and every record field.

Preliminary

QBOID Cloud API ↗

Pulling scans, images and devices from QBOID Cloud (Pro, 60 requests/min per token).

Tool

Settings QR code generator ↗

Turn the settings file exported from one M2 into a QR code, and scan it to set up other devices running the same app.

Download · zip

Perceptor API reference, offline

The same reference as HTML files to read without a connection, with the configuration QR code generator. Updated with each release.

Support for integrators

Who to ask.

A new integration project	The integration team, through the form below. Tell us your WMS, ERP or TMS and how records should arrive.
A technical question on devices you already run	[email protected]
Your system has a partner connector	The partner sets it up; see integration partners.
Building for your own customers	System integrators and resellers: Partners & resellers.

Network and security questions (outbound only, proxy, bandwidth, MDM) are answered in the IT checklist.
